Piston with Rings for AAF 5-cylinder STD size 92-93 Eurovan gas
Hover to zoom

Piston with Rings for AAF 5-cylinder STD size 92-93 Eurovan gas

SKU: 044107065H

This is a set of 5 pistons with rings and piston pins in the Standard size (81mm) or .50mm oversized (please tell me when you check out which size you need) for all AAF 5-cylind

4.5(12 reviews)
$950.00
In Stock - 98 available

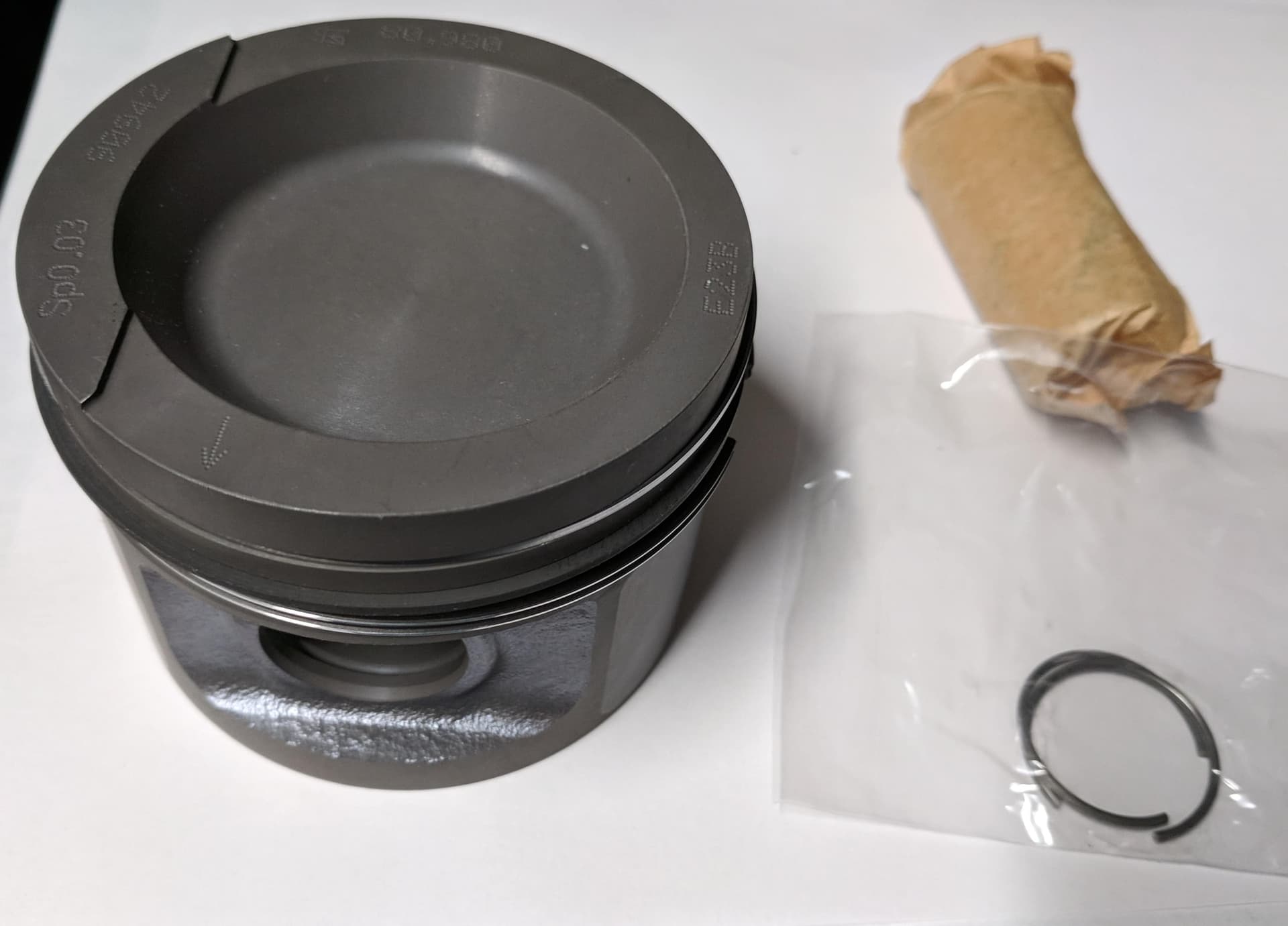

This is a set of 5 pistons with rings and piston pins in the Standard size (81mm) or .50mm oversized (please tell me when you check out which size you need) for all AAF 5-cylinder engines (gasoline).  These engines were installed in 92-94 Eurovan.  Please confirm your engine code before ordering.  These are brand new.  Here are the specifications:

  • Standard Size [STD]
  • Bolt Ø [mm]:  24.015 mm
  • Bolt length [mm]:  56 mm
  • Quantity required per engine: 5
  • Bore Ø [mm]:  81.01 mm
  • Compression Height [mm]:  38.35 mm
  • Length [mm]:  63.45 mm
  • Piston protrusion [mm]:  1.1 mm
  • Recess Depth 1 [mm]:  10.5 mm

If you have a 94-95 Eurovan 5-cylinder, you may have an ACU code engine.  These pistons will not work with that engine.  Please contact me if you need those pistons or if you need an oversized version of this piston.  All of these may be available, but please contact me first.

1

1 Year Warranty

Full coverage

30 Day Returns

Easy returns

Features

  • OEM quality or better
  • Direct fit replacement
  • Includes necessary hardware
  • 1 year warranty included
  • Expert tech support available

Specifications

SKU
044107065H
Weight
8.0 lbs
Dimensions
12" x 10" x 10"
Stock
98 available
